Gamma Radiography Shielding.

Gamma radiography shielding choices can vary greatly depending on your application and where you are performing SCAR radiography testing.  The following are just a few of the options QSA Global, Inc. offers to ensure you achieve the SCAR results you are seeking. QSA Global, Inc.’s sales teams and local distributors provide custom-tailored solutions, defining the proper techniques and shielding criteria to meet your clients’ exclusion zone requirements.
SENTINEL Shielding Bismuth Silicon FlexShield Blankets, FlexShield Guide Tube Shield, and Beamport Shield

Shielding Options & Specifications

SCAR Calculator

Item Number Style Dimensions in (cm) Description

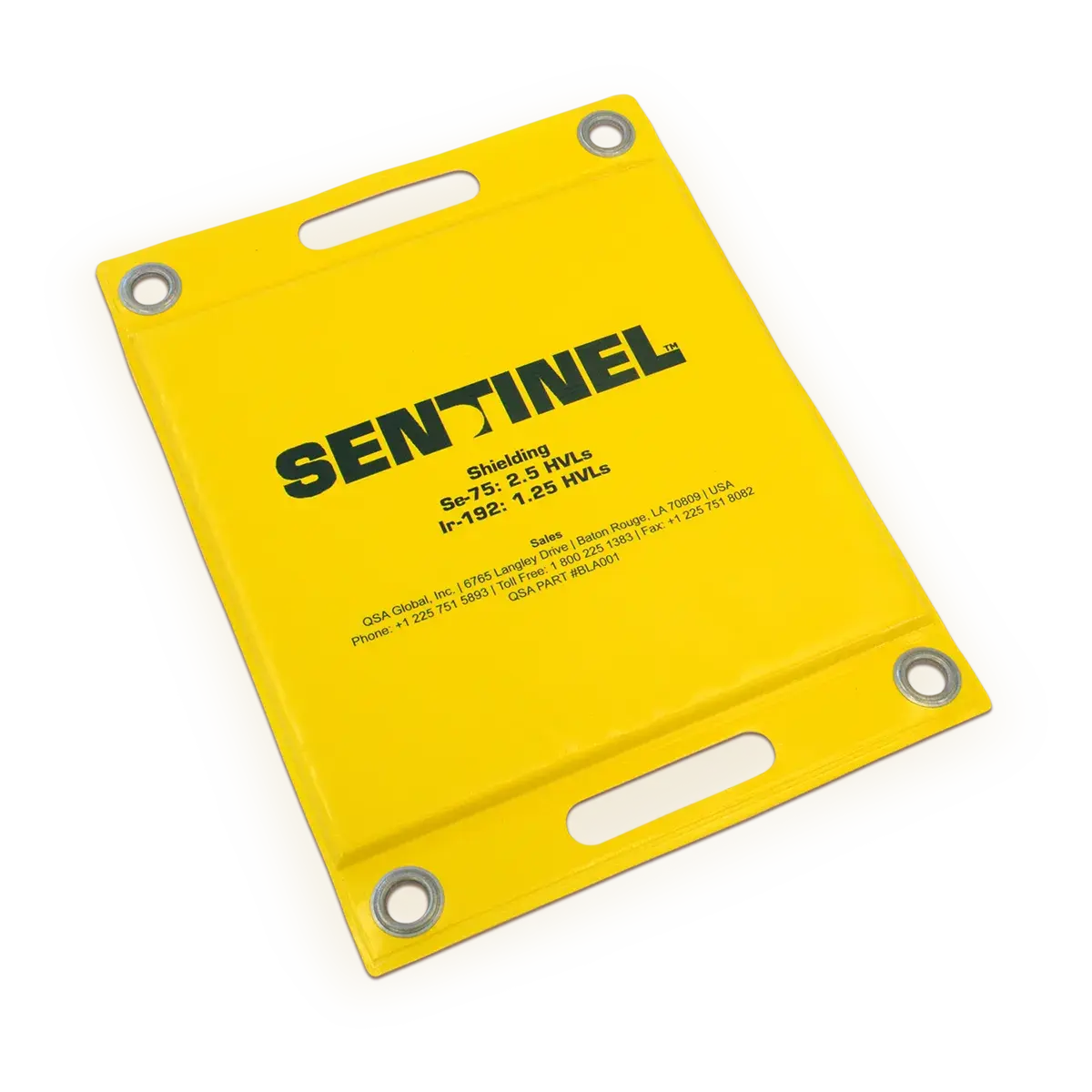

BLA001 Bismuth Silicon FlexShield Blanket 16 × 16 × 0.4
(40 × 40 × 1)

Shielding value: 2.5 HVL (Se-75) 1.25 HVL (Ir-192)

Flexible shielding blanket for back shielding primary beam radiation as well as scatter radiation (Compton scatter).

With a protective cover and integrated grommets on the sides, the durable bismuth impregnated silicon FlexShield blanket makes setup easier and faster.

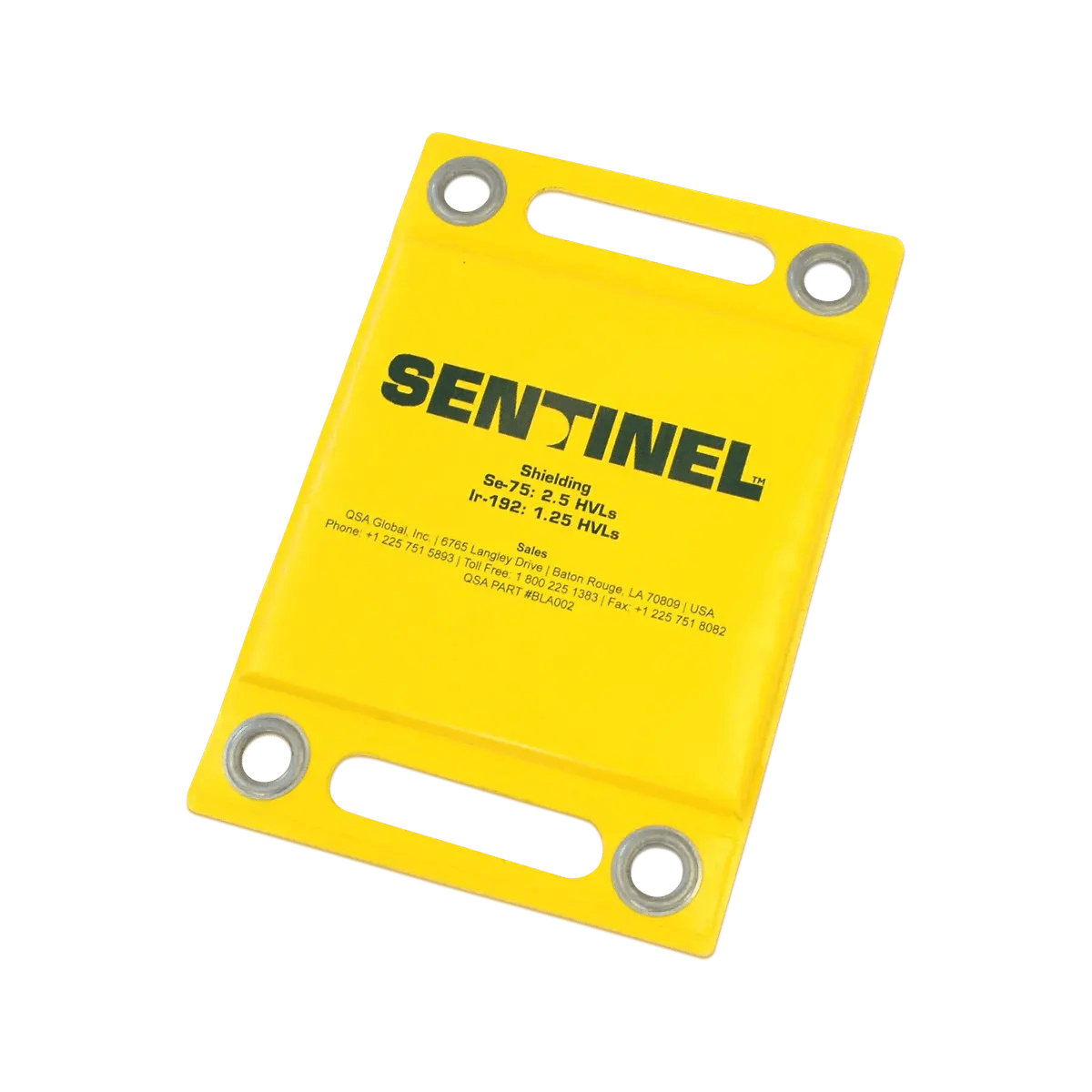

BLA002 Bismuth Silicon FlexShield Blanket 10 × 10 × 0.4
(25 × 25 × 1)

Shielding value: 2.5 HVL (Se-75) 1.25 HVL (Ir-192)

Flexible shielding blanket for back shielding primary beam radiation as well as scatter radiation (Compton scatter).

With a protective cover and integrated grommets on the sides, the durable bismuth impregnated silicon FlexShield blanket makes setup easier and faster.

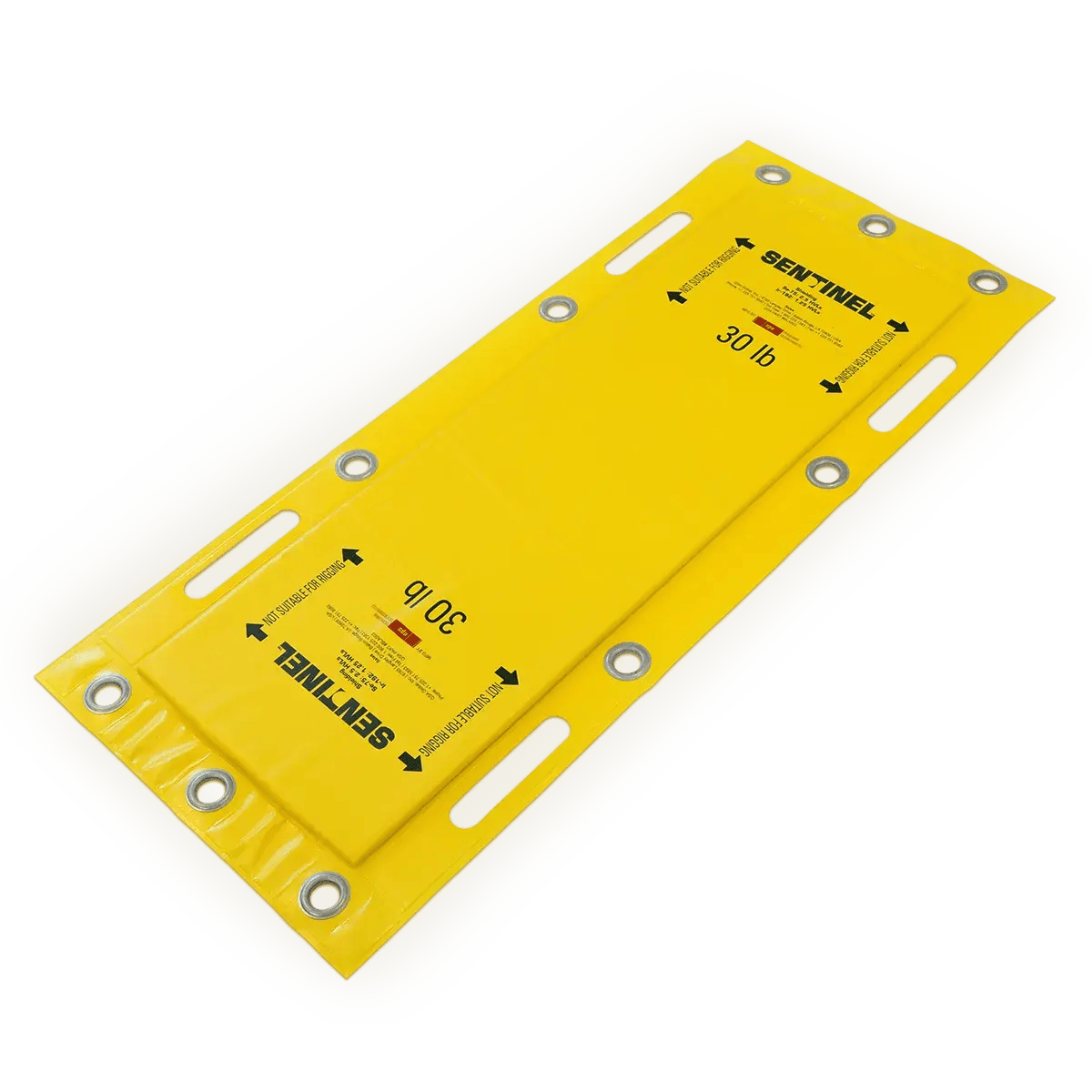

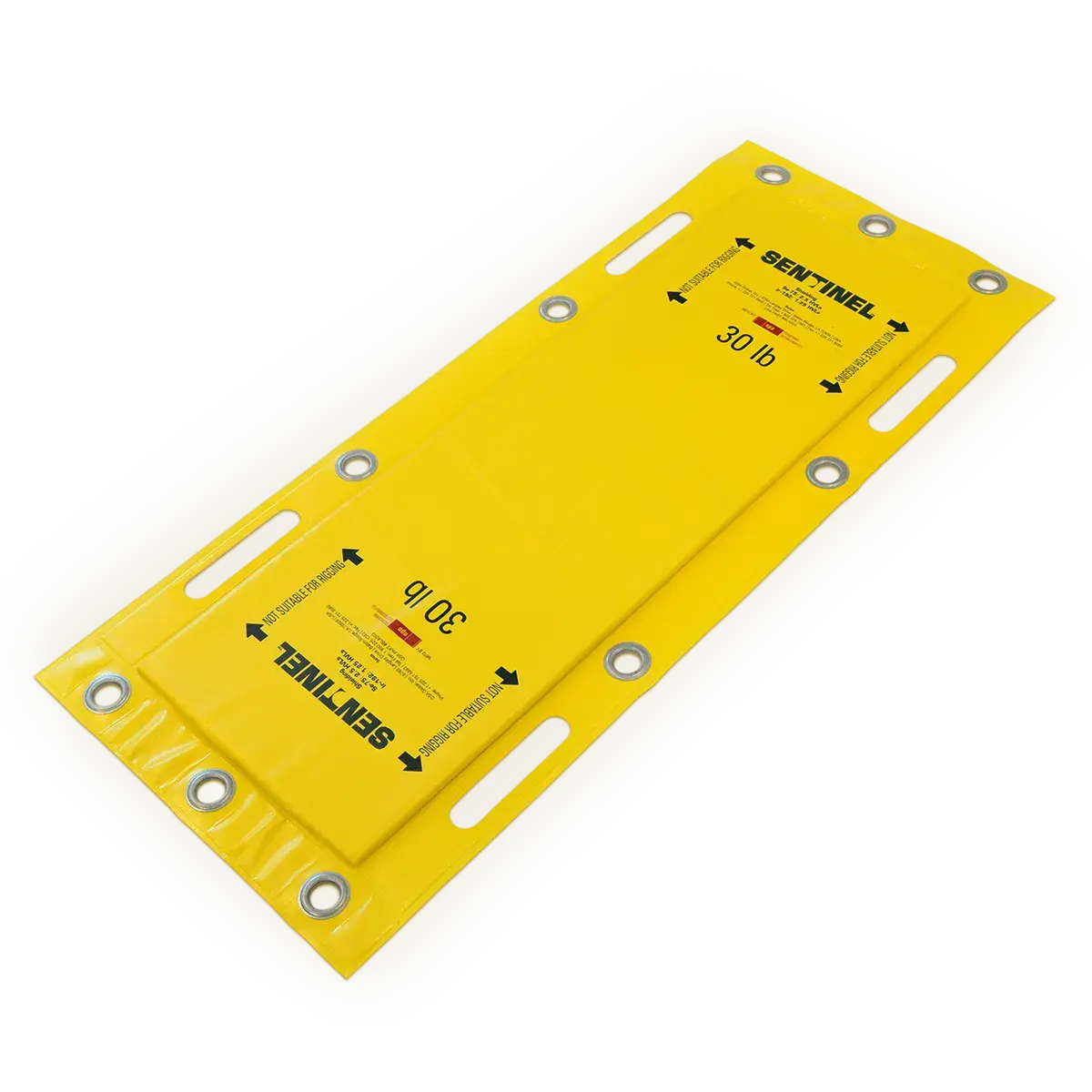

BLA003 Bismuth Silicon FlexShield Blanket 12 × 36 × 0.4
(30 × 90 × 1)

Shielding value: 2.5 HVL (Se-75) 1.25 HVL (Ir-192)

Flexible shielding blanket for back shielding primary beam radiation as well as scatter radiation (Compton scatter).

With a protective cover and integrated grommets on the sides, the durable bismuth impregnated silicon FlexShield blanket makes setup easier and faster.

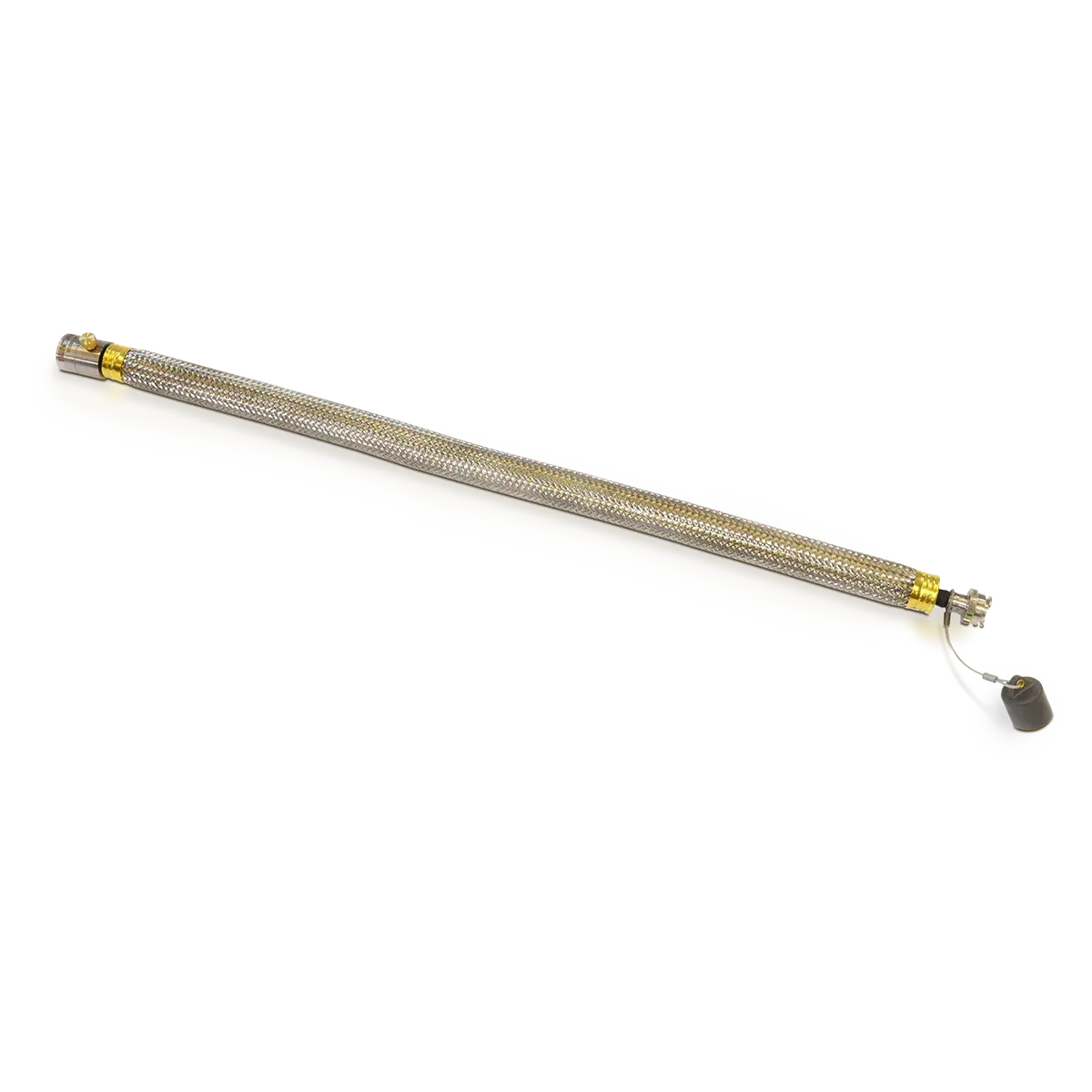

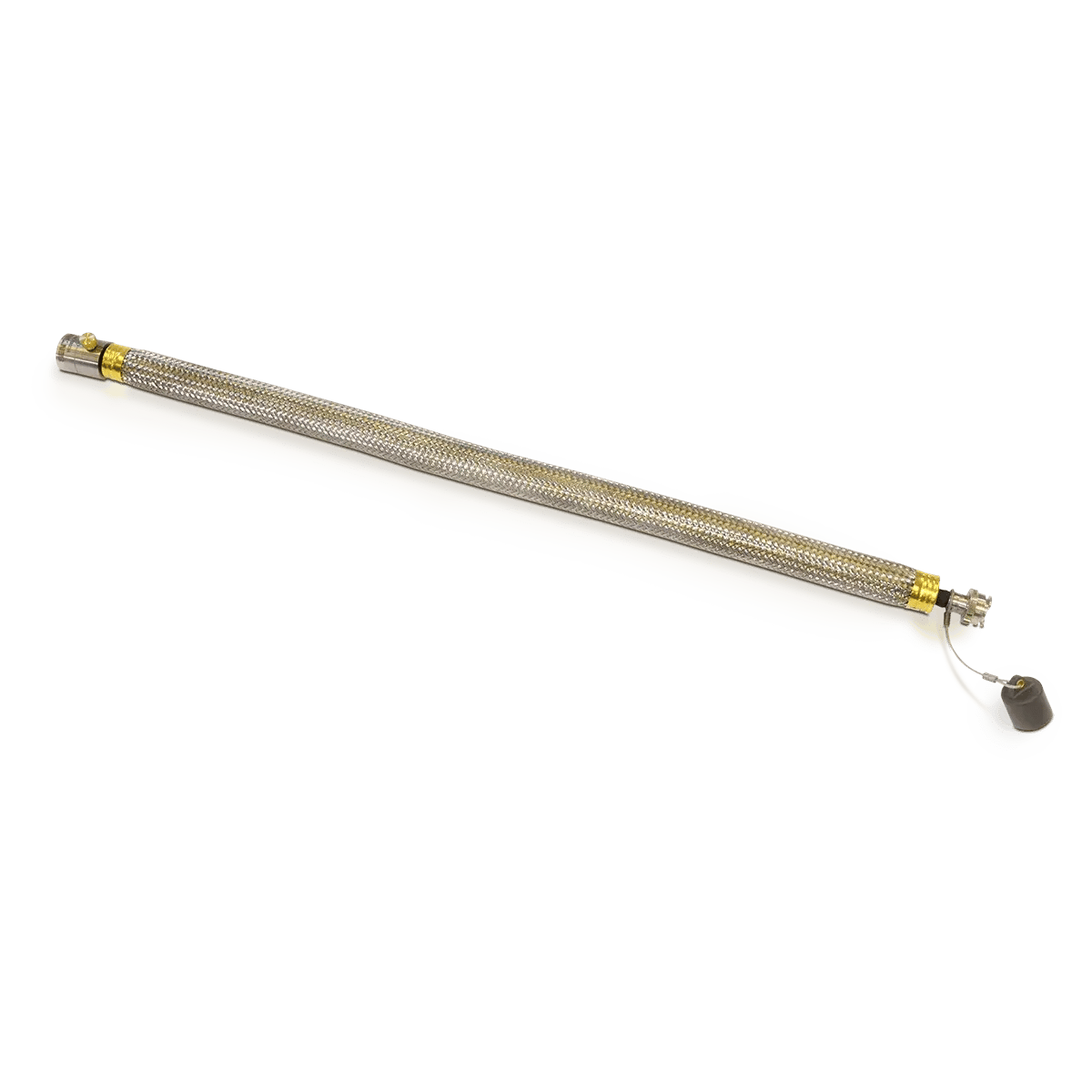

TUB011-X FlexShield Guide Tube Shield Custom-tailored length available Shielding value: 2.5 HVL (Se-75) 1.25 HVL (Ir-192)
Reduce flash dose while performing projection style radiography.

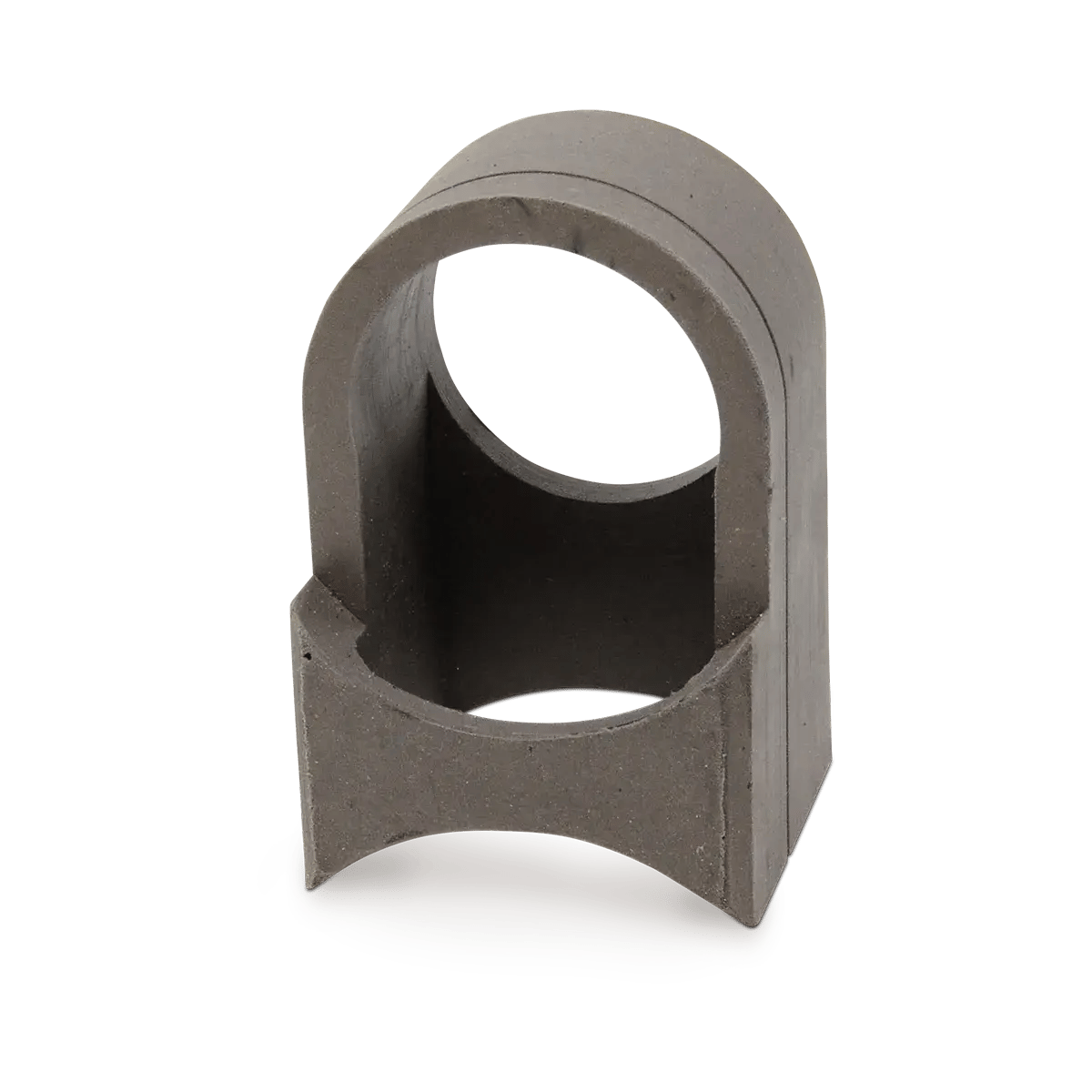

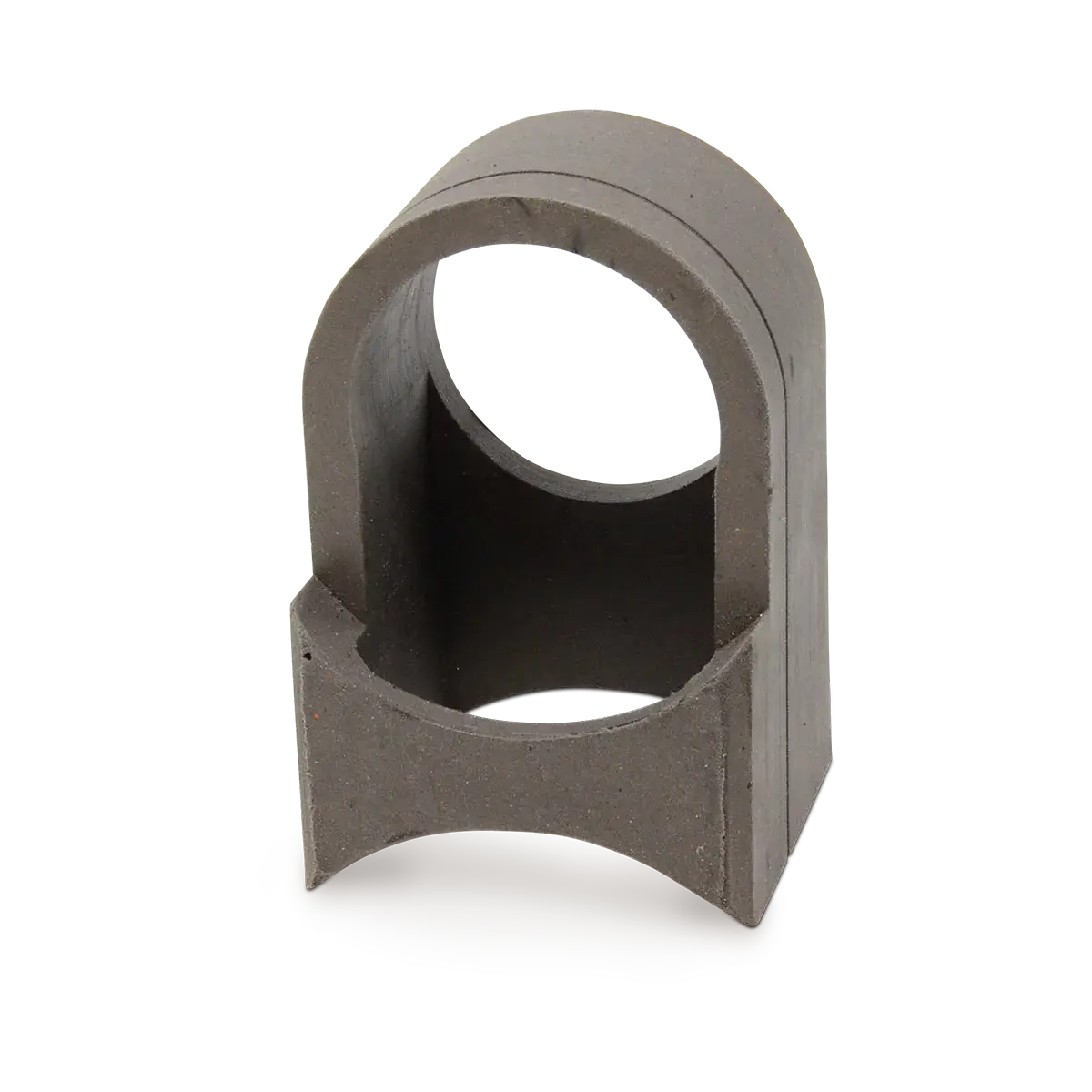

107560-08 Beamport Shield Specifically designed to fit SENTINEL™ 1075 SCARPro collimator.
Flexible to conform to any pipe diameter 3 in and above.		 Shielding value: 2.5 HVL (Se-75)
Molded FlexShield sleeve slides over the SENTINEL™ 1075 SCARPro collimator. The beamport shield allows primary beam radiation to pass unattenuated while attenuating the major source of scatter radiation off the source sidewall of the pipe.
Sheilding Blankets, Guide Tube Shields and Beamport Shields for gamma-radiography testing
