OpenVision™ DX.



Corrosion Under Insulation (CUI) Scanning. Heat Tracer Inspection. Weld Location Mapping.

Inspect large amounts of piping in environments such as refineries and petrochemical plants onshore and offshore in a fraction of the time.

Request Demo

OpenVision DX Digital CUI Scanning System

OpenVision™ DX is an easy-to-use, digital x-ray system with live video output for real-time radiographic inspection and reporting. A patented combination of a c-arm mounted 70 kV x-ray source and a digital imager allows you to observe external defects as small as 0.010-inch  (250 μm) on insulated piping.

OpenVision DX can be used on various insulation and cladding combinations, including mineral wool and calcium silicate with galvanized steel, stainless steel, and aluminum cladding up to 36 inches (91 cm) in total diameter.

OpenVision DX enables the inspection of hundreds of feet (many tens of meters) of insulated piping to quickly identify indications of corrosion or corrosion precursors such as scaling, external wall loss, and wet insulation. Pictures and real-time videos are recorded and downloaded with the touch of a button for rapid review and reporting.

OpenVision DX is IRR99/IRR17,  ANSI 43.5, and CE compliant.

Operation of OpenVision DX
Rugged and Reliable

Rugged and Reliable

A rugged aluminum and carbon fiber c-arm house a robust metal ceramic x-ray source, integrated controller and battery, and a CMOS imager. Battery life is over three hours of operation. Data is securely stored on the internal hard drive or remote tablet.

Features-Live-Image-and-Videos

Minimize Missed Calls

High-resolution live digital video allows operators to minimize missed calls. Direct download of high-resolution images and videos provide quick transfer into reports for rapid reporting.

Feature-Access-Tight-Spaces

Access Tight Spaces

A 30% thinner imager increases access to tight spaces. Difficulty positioning the c-arm? Simply pivot the imager straight out, insert into a narrow space, then reposition at 90 degrees for scanning.

Features-Ergonimic-Handle

Maximize Probability of Detection

New ergonomic features support multiple configurations to facilitate both vertical and horizontal inspections at various heights, enable access to tighter spaces, and lessen operator fatigue.

OpenVision Method for Corrosion Under Insulation

The OpenVision Method

OpenVision is a nondestructive testing (NDT) method using real-time radiography to quickly scan insulated piping systems for indications of corrosion or corrosion precursors, weld mapping, and heat trace location.   Benefits include:

  • High-speed screening
  • Easy operator interpretation
  • Minimal operator training
  • Reduced missed calls
  • Video and still image recording
  • Simplified report generation

Learn More

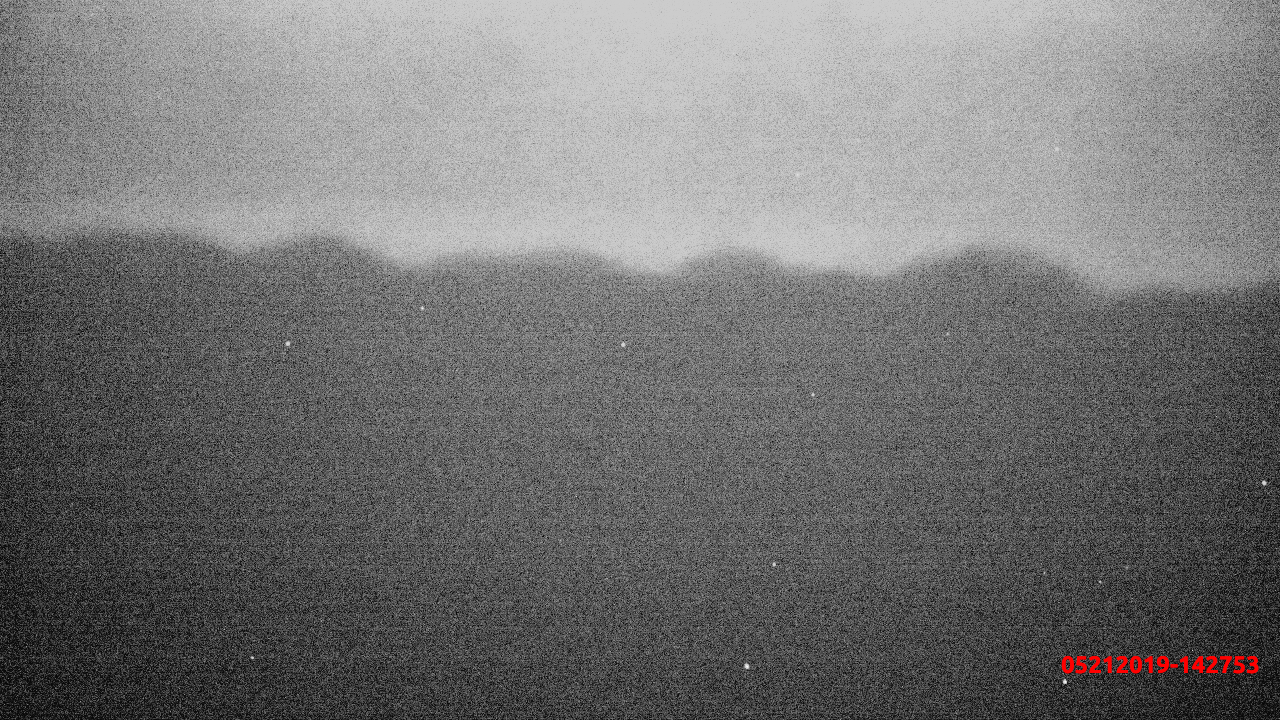

Still Image Capture of Defects

Record high-resolution still images directly onto OpenVision DX's internal storage or remotely from the wireless monitor.   Review images and videos in real time or download for integration into client reports.

What the Experts Say

  • The benefit that the OpenVision system provides to the industry is the ease of operation and fast screening capability. It checks a lot of boxes as far as assessing that pipework for the presence of corrosion byproduct. It’s lightweight, it’s wireless, it’s fast-screening, and it’s real-time.

    View Case Study

    Mark Susich

    Above Region Pressure Systems
    Integrity Discipline Leader

    OpenVision DX Accessories

    OpenVision DX Wireless Rugged Tablet

    OpenVision DX Rugged Tablet

    Storage 128 GB Micro SD Card
    Connectivity 2.4 GHz WiFi
    Screen Size 10 in (25 cm)
    Weight 1.15 lb (0.52 kg)
    Battery Life 9 hours
    Still Image Storage  120,000+
    Video Storage 9000+ minutes
    OpenVision DX Pirate Eye for hands free viewing

    OpenVision DX PirateEye

    Allows operator hands-free viewing of the live video feed from OpenVision.

    Connectivity HDMI
    Display

    WVGA color LCD display (854x480)

    Safety Compliance

    U.S. MIL SPEC MIL-PRF-31013
    ANSI Z87.1+
    U.S. Federal OSHA
    CE EN 166 FTKN

    Learn More.

    Learn more about the OpenVision Method and OpenVision DX:

    • Case Study: BP & OpenVision
    • OpenVision & CUI Videos
    • Application Matrix (Imperial)
    • Application Matrix (Metric)
    • Product Brochure



    Request Demo.

    Request a demo to learn more about the OpenVision Method and how OpenVision DX can help you inspect large amounts of piping quickly to identify corrosion or corrosion precursor indicators.

    In-person and virtual demos are available based on your location and preferences.

    Request Demo

    Support.

    Our goal is to provide you with an outstanding ownership experience. 24-hour support is available to address your unique needs.

    • OpenVision Method Training
    • OpenVision DX User Manual
    • OpenVision DX Software Manual
    • Software Update Instructions
    Contact Support
